Automated Tray Denesting

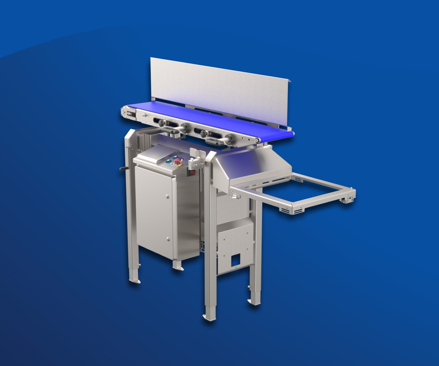

Cleanline Buffer Air
The Cleanline Buffer Air is a pneumatic buffer solution that delivers trays to the Cleanline Tool with up to 120 trays per minute.
With this solution, you minimize manual intervention as tray stacks are automatically fed from the buffer to the denester, maintaining a steady tray supply and reducing line stops.
With its fast one-minute tool change, its recipe-based control system makes it easy to adapt to different tray sizes and shapes, keeping your operations flexible and cost-effective.
Cleanline Buffer Air
Technical Specifications
Capacity
Up to 120 trays/min
Air Consumption
300 L/min at 120 trays/min
Air Pressure
6 bar
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Weight
Approx. 200 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Noise Level
< 80 dB
Power Supply
200-240V L1 + N (L1 + L2)
Power Consumption
0.21 kW
Full-Load Current
0.91 A
Max SCCR (Ik Max)
6 kA
Max Fuse
16 A
Frequency
50 Hz
Automated Tray Handling
Versatile Tray Denesting Designed To Handle Any Tray With Precision
Production efficiency starts with reliable denesting. At QUPAQ, we provide the world’s most versatile technology, capable of handling virtually any tray material and shape with unmatched accuracy.
By eliminating manual bottlenecks and reducing downtime, our solutions ensure your production line maintains a constant, high-speed flow - no matter the complexity of your packaging line.
Let's Find the Best Denester for Your Production Requirements
Leave a request here, and we'll get back to you as soon as possible.
We’d love to learn more about who you are, what you’re working on, and where you want to take your food production.
