Automated Tray Denesting
Cleanline Rack Air
The Cleanline Rack Air is a pneumatic denester that has a capacity of up to 120 trays per minute, depending on tray specifications.
Including a rack into your production line is a flexible solution, as you can switch between different tray sizes within a minute by changing the Cleanline Tool.
Moreover, the Cleanline Rack Air doesn't take up a lot of space because of its rack function. Its small footprint therefore enables it to be integrated into any existing packaging lines.

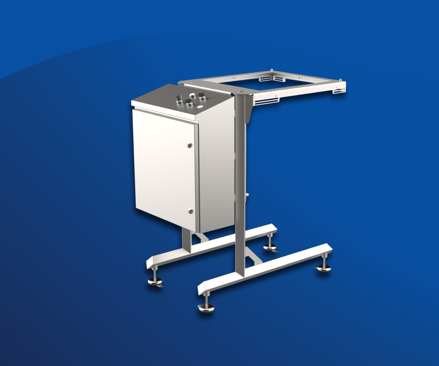

Cleanline Rack Air
Technical Specifications
Capacity
Up to 120 trays/min
Air Consumption
300 L/min at 120 trays/min
Air Pressure
6 bar
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Weight
Approx. 75 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Noise Level
< 80 dB
Power Supply
200-240V L1 + N (L1 + L2)
Power Consumption
0.06 kW
Full-Load Current
0.26 A
Max SCCR (Ik Max)
6 kA
Max Fuse
13 A
Frequency
50 Hz
Automated Tray Handling
Versatile Tray Denesting Designed To Handle Any Tray With Precision
Production efficiency starts with reliable denesting. At QUPAQ, we provide the world’s most versatile technology, capable of handling virtually any tray material and shape with unmatched accuracy.
By eliminating manual bottlenecks and reducing downtime, our solutions ensure your production line maintains a constant, high-speed flow - no matter the complexity of your packaging line.
