Automated Tray Denesting

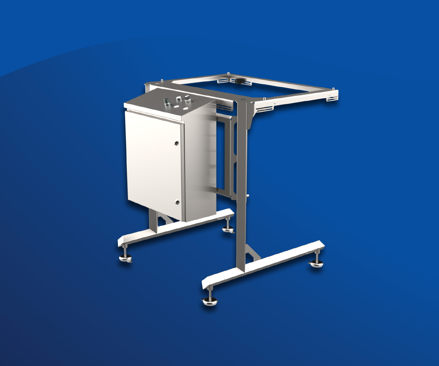

Cleanline Rack Air Twin

The Cleanline Rack Air Twin is an air-driven solution built to support the Cleanline Tool Twin for highspeed, dual-lane denesting. This adaptable solution facilitates a swift switch between different tray sizes within a minute by changing the Cleanline Tool Twin.

The small footprint enables the small footprint enables the Cleanline Rack Air Twin to be integrated into any existing packaging lines, boasting a capacity of up to 2x120 trays per minute, depending on tray specifications.

Single or Dual-Lane Denesting?

Whether you need maximum capacity during peak production or a more streamlined setup for smaller batches, the Cleanline Rack Air Twin provides the freedom to choose the configuration that best suits your workflow.

Therefore, the Cleanline Rack Air Twin gives you the flexibility to run your production line with either one or two trays at a time, depending on your operational needs.

Three Reasons to Choose
the Cleanline Rack Air Twin

Cleanline Rack Air Twin

Technical
Specifications

Capacity Up to 2 x 120 trays/min
Air Consumption 300 L/min at 120 trays/min
Air Pressure 6 bar
Humidity 10% - 90%
Operational Temperature 5°C-40°C / 41°F-104°F
Weight Approx. 120 kg
Steel Quality EN 1.4301, AISI 304
IP Class *IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Noise Level < 80 dB
Power Supply 200-240V L1 + N (L1 + L2)
Power Consumption 0.06 kW
Full-Load Current 0.26 A
Max SCCR (Ik Max) 6 kA
Max Fuse 13 A
Frequency 50 Hz
Automated Tray Handling

Versatile Tray Denesting Designed To Handle Any Tray With Precision

Production efficiency starts with reliable denesting. At QUPAQ, we provide the world’s most versatile technology, capable of handling virtually any tray material and shape with unmatched accuracy.

By eliminating manual bottlenecks and reducing downtime, our solutions ensure your production line maintains a constant, high-speed flow - no matter the complexity of your packaging line.
