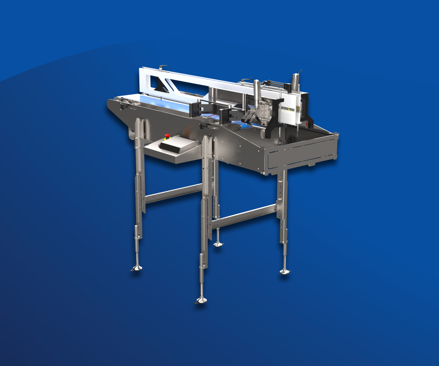

Smart Buffer Servo Twin

The Smart Buffer Servo Twin delivers all the benefits of the Smart Buffer Servo, only with double the output. Capable of handling up to 2 × 200 trays per minute, it is designed for high-volume production environments where efficiency, automation, and reliability are critical.

Featuring two integrated buffer lanes with independent drives, the system ensures a continuous and precise tray supply while minimizing manual handling. Its flexible configuration allows installation in either a 90° or 180° layout, making it easy to adapt to your production setup. The integrated HMI enables recipe-based control and quick changeovers between tray formats.

Download Data Sheet

Complete Control

Powered by intelligent servo technology, the Smart Buffer Servo Twin provides complete control of the denesting process. Combined with the custom-made Smart Tool Twin, it enables tray changes in less than a minute and automatically detects and corrects tray faults to reduce downtime and maximize uptime.

With its compact footprint, integrated tray conveyor, and fully automated stack loading, the Smart Buffer Servo Twin is the ideal solution for manufacturers looking to maximize output without increasing labor requirements.

Three Reasons to Choose the Smart Buffer Servo Twin

Denests up to 200 Trays per Minute

Automatic Error Correction

Powered by intelligent software, the Smart Buffer Servo Twin can automatically detect and correct rare denesting errors in real time. This minimizes the need for manual intervention and supports continuous, handsfree operation with exceptional uptime and reliability.

Automatic Tray Feeding System

Weber Inc. x QUPAQ

“QUPAQ’s reputation as an industry leader in tray denesting technology is well-earned. The Smart Buffer Servo Twin was selected because it aligned with the overall system’s goals of speed, precision, and minimal manual intervention. Its high-capacity design was critical for meeting the production targets of 180 trays per minute.”

Ron Lussier

Chief Operating Officer , Weber Inc.

Smart Buffer Servo Twin

Technical Specifications

Capacity Up to 2 x 200 trays/min

Humidity 10% - 90%

Operational Temperature 5°C-40°C / 41°F-104°F

Weight Approx. 300 kg

Steel Quality EN 1.4301, AISI 304

IP Class *IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)

Noise Level < 80 dB

Power Supply 200-240V L1 + N (L1 + L2)

Power Consumption 1.34 kW

Full-Load Current 5.84 A

Max SCCR (Ik Max) 6 kA

Max Fuse 16 A

Frequency 50-60 Hz

Automated Tray Handling

Versatile Tray Denesting Designed To Handle Any Tray With Precision

Production efficiency starts with reliable denesting. At QUPAQ, we provide the world’s most versatile technology, capable of handling virtually any tray material and shape with unmatched accuracy.

By eliminating manual bottlenecks and reducing downtime, our solutions ensure your production line maintains a constant, high-speed flow - no matter the complexity of your packaging line.
