Automated Tray Denesting

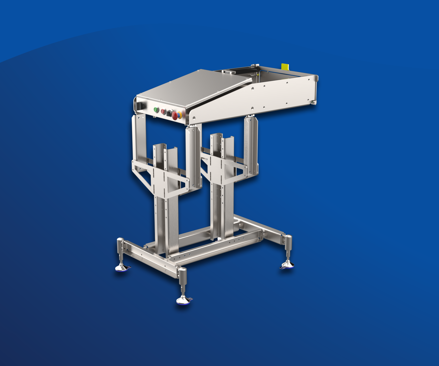

Smart Rack Basic
The Smart Rack Basic delivers efficient tray denesting in a compact footprint, making it ideal for space-conscious production lines. With speeds of up to 70 trays per minute, it ensures a smooth and reliable product flow.
At the heart of the machine is the innovative Smart Tool, which can be changed in less than a minute. This enables fast tray changeovers, reduces downtime, and makes it easy to switch between different tray formats.
The Smart Rack Basic is also designed for simplicity. With intuitive controls and easy operation, there's no need for an engineering degree - it's automation made easy.
Handcrafted in Denmark from stainless steel, the machine combines hygienic design, durability, and low maintenance, which makes it a reliable and cost-effective solution for modern food production.
Smart Rack Basic
Technical Specifications
Capacity
Up to 70 trays/min
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Weight
Approx. 75 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Noise Level
< 80 dB
Power Supply
200-240V L1 + N (L1 + L2)
Power Consumption
0.93 kW
Full-Load Current
4.02 A
Max SCCR (Ik Max)
6 kA
Max Fuse
16 A
Frequency
50-60 Hz
Automated Tray Handling
Versatile Tray Denesting Designed To Handle Any Tray With Precision
Production efficiency starts with reliable denesting. At QUPAQ, we provide the world’s most versatile technology, capable of handling virtually any tray material and shape with unmatched accuracy.
By eliminating manual bottlenecks and reducing downtime, our solutions ensure your production line maintains a constant, high-speed flow - no matter the complexity of your packaging line.
