Automated Tray Denesting

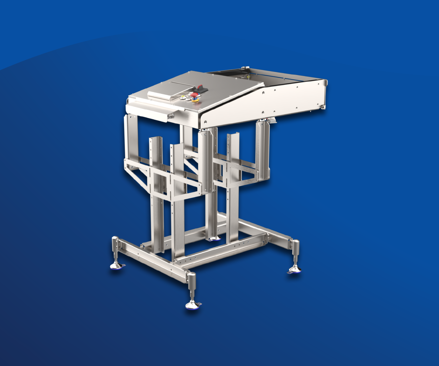

Smart Rack Servo Twin
The Smart Rack Servo Twin combines all the advanced features of the Smart Rack Servo with twice the capacity, making it the ultimate solution for high-volume tray denesting. It can denest up to 2 × 200 trays per minute through its twin-lane setup, delivering maximum throughput without increasing your production footprint.
Powered by servo-driven technology and intelligent software, the Smart Rack Servo Twin ensures precise tray handling, automatic error correction, and reliable, hands-free operation. Combined with the Smart Tool Twin, it enables tool changes in less than a minute and seamless switching between tray formats through recipe-based control.
Despite its impressive capacity, the Smart Rack Servo Twin maintains a compact footprint and hygienic design. Handcrafted in Denmark from stainless steel, it offers easy cleaning, low maintenance, and exceptional reliability, which makes it the ideal solution for high-output packaging lines.
Smart Rack Servo Twin
Technical Specifications
Capacity
Up to 2 x 200 trays/min
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Weight
Approx. 100 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Noise Level
< 80 dB
Power Supply
200-240V L1 + N (L1 + L2)
Power Consumption
0.93 kW
Full-Load Current
4.02 A
Max SCCR (Ik Max)
6 kA
Max Fuse
16 A
Frequency
50 Hz
Automated Tray Handling
Versatile Tray Denesting Designed To Handle Any Tray With Precision
Production efficiency starts with reliable denesting. At QUPAQ, we provide the world’s most versatile technology, capable of handling virtually any tray material and shape with unmatched accuracy.
By eliminating manual bottlenecks and reducing downtime, our solutions ensure your production line maintains a constant, high-speed flow - no matter the complexity of your packaging line.
