One Tool. Two Orientations.
Changing tray orientation is quick and effortless. Simply rotate the Smart Tool inside the machine to switch between short-side and long-side leading. No additional tools and no lengthy changeovers are required.
Automated Tray Denesting

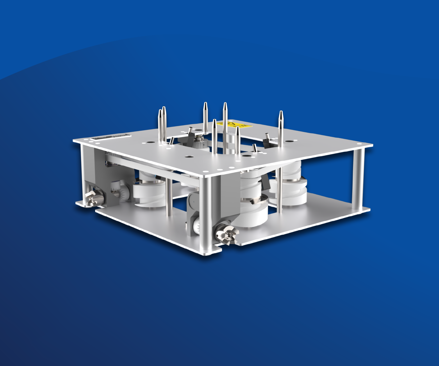

Smart Tool Double Orientation
The Smart Tool Double Orientation is a patented denesting solution designed to provide maximum flexibility in your production line. It's capable of denesting trays at speeds of up to 200 trays per minute, and it allows you to switch between short-side-leading and long-side-leading tray orientation simply by rotating the tool inside the Rack or Buffer - eliminating the need for an additional tool.
The Smart Tool Double Orientation is custom-made for your specific tray format which ensures precise and reliable denesting every time. Thanks to its lightweight and easy-to-operate design, the tool can be removed and replaced in just one minute.
Built for demanding food production environments, the Smart Tool Double Orientation features a patented open design that allows for easy access and thorough cleaning. Combining flexibility, hygiene, and high-speed performance, it is the ideal solution for manufacturers looking to optimize tray orientation while maintaining maximum uptime.
Three Reasons to Choose the Smart Tool Double Orientation
Smart Tool Double Orientation
Technical Specifications
Capacity
Up to 200 trays/min
Minimum Tray Length
100 x 100 mm (other sizes on request)
Maximum Rectangular Tray Length
292 x 236 mm (other sizes on request)
Maximum Quadratic Tray Length
272 x 272 mm (other sizes on request)
Weight
Approx. 12 kg
Steel Quality
EN 1.4301, AISI 304
Operational Temperature
5°C-40°C / 41°F-104°F
Humidity
10% - 90%
Noise Level
< 80 dB
Please Note:
The Smart Tool Double Orientation is not compatible with machines manufactured before 2019
Automated Tray Handling
Versatile Tray Denesting Designed To Handle Any Tray With Precision
Production efficiency starts with reliable denesting. At QUPAQ, we provide the world’s most versatile technology, capable of handling virtually any tray material and shape with unmatched accuracy.
By eliminating manual bottlenecks and reducing downtime, our solutions ensure your production line maintains a constant, high-speed flow - no matter the complexity of your packaging line.
