Automated Tray Denesting

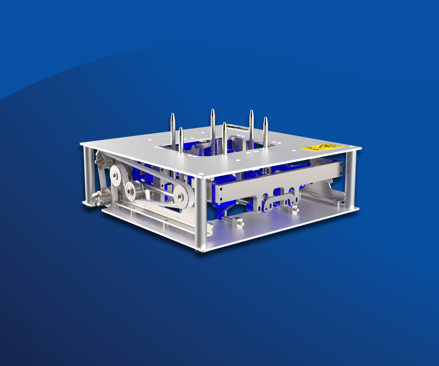

Smart Tool Flex

The Smart Tool Flex is designed to denest trays that do not have a consistent edge that a screw denester can screw in between. Instead it works by clamping the stack, and then clamping the bottom of the lowest tray in the stack and pulling down.

With a capacity of up to 60 trays per minute, the Smart Tool Flex is ideal for handling flat boards or trays made from cardboard, pulp, wood, and other sustainable or unconventional materials. This gives manufacturers greater freedom when choosing packaging types without compromising production efficiency.

Download Data Sheet

Built for the Unusual Tray

Compatible with any Smart denester, regardless of production year, the Smart Tool Flex makes it easy to expand your packaging capabilities while continuing to use your existing equipment. A quick tool change allows seamless transitions between tray formats and materials with minimal downtime.

The patented Smart Tool Flex is built for demanding production environments as it features an open design that enables thorough cleaning and supports the highest hygiene standards. Combining flexibility, reliability, and ergonomic handling, it is the ideal solution for manufacturers working with non-standard tray designs.

Three Reasons to Choose the Smart Tool Flex

Denests up to 60 Trays or Flat Boards per Minute

With a capacity of up to 60 trays per minute, the Smart Tool Flex is ideal for handling trays made from cardboard, pulp, wood, and other sustainable or unconventional materials.

This gives manufacturers greater freedom when choosing packaging types without compromising production efficiency.

Handles Trays That Other Denesters Can't

The Smart Tool Flex is ideal for handling trays made from cardboard, pulp, wood, and other sustainable or unconventional materials.

This gives manufacturers greater freedom when choosing packaging types without compromising production efficiency.

Quick Tray Change

Smart Tool

Technical  Specifications

Capacity Up to 60 trays or flat boards/min

Minimum Tray Length 120 x 100 mm (other sizes on request)

Maximum Tray Length 266 x 196 mm (under certain conditions up to 311 x 218. For more information about specific tray dimensions, please contact QUPAQ’s Technical Support Department)

Weight Approx. 20 kg

Steel Quality EN 1.4301, AISI 304

Operational Temperature 5°C-40°C / 41°F-104°F

Humidity 10% - 90%

Noise Level < 80 dB

Automated Tray Handling

Versatile Tray Denesting Designed To Handle Any Tray With Precision

Production efficiency starts with reliable denesting. At QUPAQ, we provide the world’s most versatile technology, capable of handling virtually any tray material and shape with unmatched accuracy.

By eliminating manual bottlenecks and reducing downtime, our solutions ensure your production line maintains a constant, high-speed flow - no matter the complexity of your packaging line.
