Automated Tray Handling

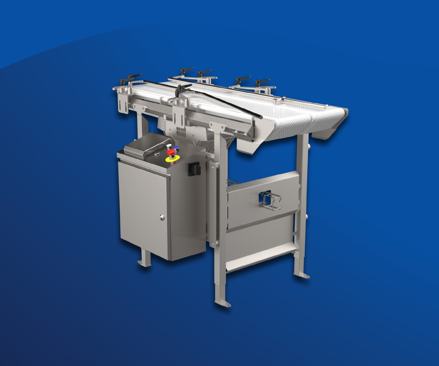

Belt Tray Turner
The Belt Tray Turner is designed to ensure trays are presented in the correct orientation for downstream processing. Using two parallel belts running at different speeds, it gently and precisely rotates trays, which allows them to be positioned either short-edge or wide-edge leading for seamless integration with the next step in the production line.
As a stand-alone solution, the Belt Tray Turner is easy to integrate into both new and existing production setups. It accommodates a wide range of tray sizes, up to 360 × 360 mm, and can operate at speeds of up to 100 trays per minute, depending on tray size and shape.
Featuring an intelligent electrical control system and a hygienic, low-maintenance design, the Belt Tray Turner delivers reliable performance in demanding production environments.
Belt Tray Turner
Technical Specifications
Capacity
Up to 100 trays/min
Weight
Approx. 105 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Noise Level
< 80 dB
Power Supply
200-240V L1 + N (L1 + L2)
Power Consumption
0.24 kW
Full-Load Current
1.06 A
Max SCCR (Ik Max)
6 kA
Max Fuse
16 A
Frequency
50 Hz
