Easy Diverger
Automated Tray Handling

Easy Diverger

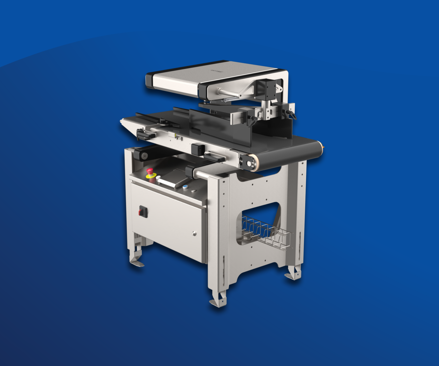

The Easy Diverger is a flexible solution designed to maximize the capacity of downstream equipment. By efficiently splitting products from a single lane into two lanes at a capacity up to 140 trays per minute, it helps increase throughput while keeping a controlled production flow. Its compact design makes it easy to integrate into both new and existing production lines.

With fully electrical, recipe-based control, changing between tray sizes or production setups takes no more than a minute. This enables fast changeovers, minimal downtime, and complete flexibility to adapt to changing production requirements.

Built with hygiene and efficiency in mind, the Easy Diverger features an open design for easy cleaning and low maintenance. The result is a reliable and cost-effective solution that helps improve productivity while reducing operating costs.

Download Data Sheet
Tray Turning Function

More than a Diverger

The Easy Diverger can quickly be configured to operate as a tray turner, allowing trays to be presented either short-side or long-side leading for downstream processing. With a capacity of up to 100 trays per minute, it delivers reliable and precise tray orientation while maintaining a smooth production flow.

With recipe-controlled settings and fast changeovers, it offers two essential functions in one compact machine, and as a result, you can save both space and investment costs while increasing your production flexibility.

Three Reasons to Choose the Easy Diverger

Easy Diverger

Technical Specifications

Diverging Capacity Up to 140 trays/min
Turning Capacity Up to 100 trays/min
Weight Approx. 225 kg
Steel Quality EN 1.4301, AISI 304
IP Class *IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity 10% - 90%
Operational Temperature 5°C-40°C / 41°F-104°F
Noise Level < 80 dB
Power Supply 3 x 400V + N
Power Consumption 1.65 kW
Full-Load Current 3.40 A
Max SCCR (Ik Max) 6 kA
Max Fuse 13 A
Frequency 50 Hz
