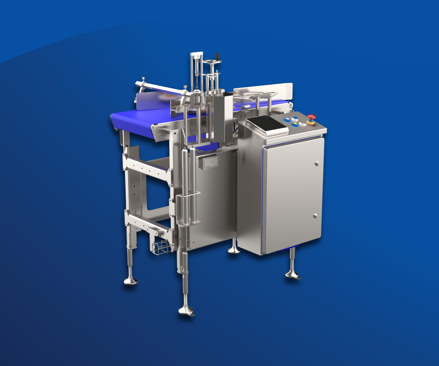

Grip Tray Turner
The Grip Tray Turner is a flexible tray turner with a capacity of up to 100 trays per minute. It automatically turns any sealable tray from either short-side or long-side leading. Its patented grip turning system ensures smooth and consistent performance, even at high speeds.
Complete tray turning control allows the device to gently grip and rotate trays without affecting the product or its position inside the tray. This makes the Grip Tray Turner ideal for delicate products that must remain in place after denesting, sealing, or handling.
The Grip Tray Turner can be adjusted to fit different tray formats and includes automatic speed regulation from the denester. It comes with an integrated conveyor driven by a drum motor and frequency converter. The Grip Tray Turner can be used as a standalone unit or integrated with our loading systems.
Grip Tray Turner
Technical Specifications
Capacity
Up to 100 trays/min
Weight
Approx. 150 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Noise Level
< 80 dB
Power Supply
200-240V L1 + N (L1 + L2)
Power Consumption
0.29 kW
Full-Load Current
1.26 A
Max SCCR (Ik Max)
6 kA
Max Fuse
13 A
Frequency
50 Hz
