Tray Handling

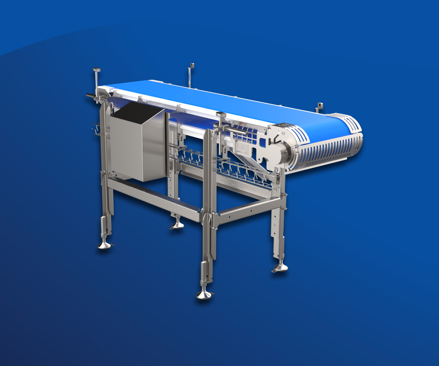

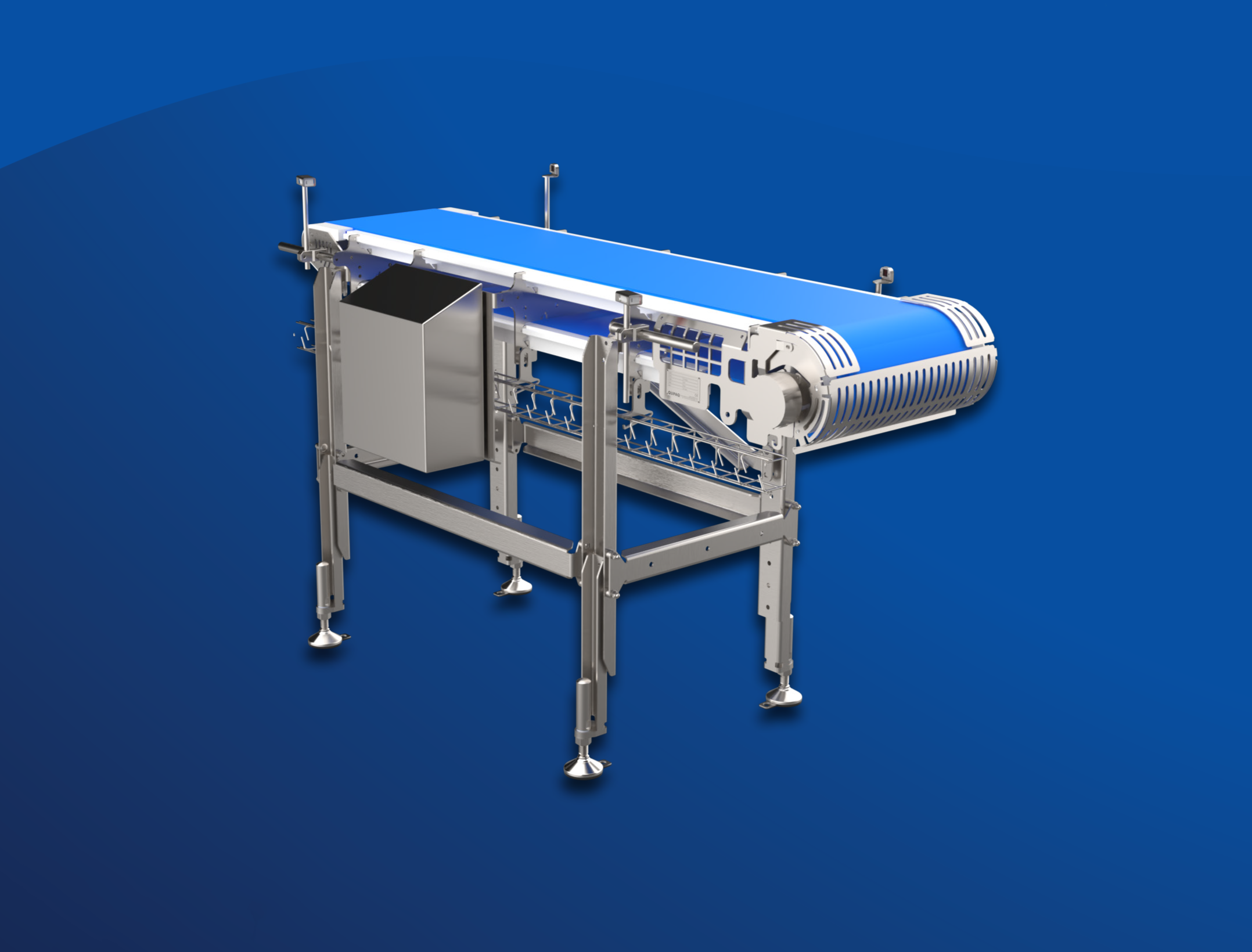

Standard Conveyor
The Standard Conveyor is designed for stable and efficient transport of trays and food products. With a 300 mm belt width and a drum motor drive, it delivers smooth conveying. Electrical control with a frequency converter is included in a stainless steel control cabinet.
The Standard Conveyor can be produced in any length to match customer requirements and is available with or without flights. Optional adjustable guides ensure accurate tray positioning on the belt, which makes the conveyor adaptable to different tray formats and line layouts.
Built entirely in stainless steel, the Standard Conveyor is made for harsh production environments. Its open construction and small footprint support easy industrial cleaning, low maintenance, and easy integration into existing or new production lines.
Standard Conveyor
Technical Specifications
Weight
Approx. 75 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Noise Level
< 80 dB
Power Supply
200-240V L1 + N (L1 + L2)
Power Consumption
0.50 kW
Full-Load Current
2.16 A
Max SCCR (Ik Max)
6 kA
Max Fuse
16 A
Frequency
50-60 Hz
