Tray Handling
Standard Conveyor Curve
The Standard Conveyor Curve is designed to transport and distribute trays or products while turning them 90 degrees for optimal positioning in the production line. It ensures smooth and controlled orientation, supporting efficient downstream processing.
The Standard Conveyor Curve features a 300 mm wide stainless steel wire belt and is driven by a drum motor for stable operation. Electrical control with a frequency converter is included in a stainless steel control cabinet. Adjustable guides can be added to ensure precise tray positioning on the curve.
Built entirely in stainless steel, the Standard Conveyor Curve is made for harsh production environments. Its open construction and small footprint allow for easy industrial cleaning and straightforward integration into existing or new production lines.

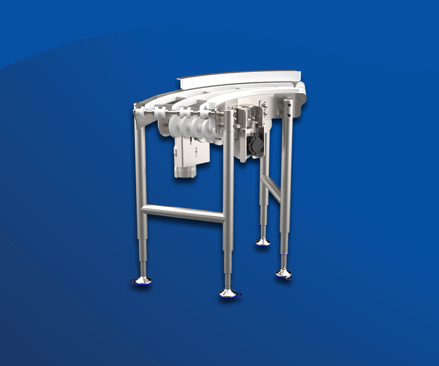

Standard Conveyor Curve
Technical Specifications
Weight
Approx. 100 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Noise Level
< 80 dB
Power Supply
200-240V L1 + N (L1 + L2)
Power Consumption
0.50 kW
Full-Load Current
2.16 A
Max SCCR (Ik Max)
6 kA
Max Fuse
16 A
Frequency
50 Hz
