Tray Handling

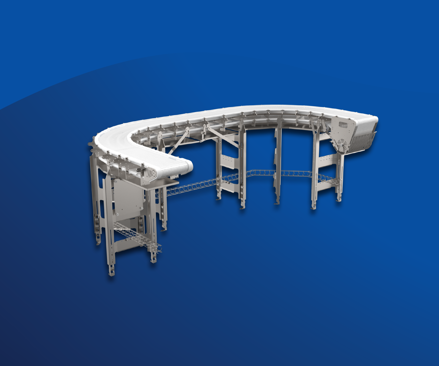

Standard Conveyor U
The Standard Conveyor U is designed to transport trays or products while changing their travel direction by 180 degrees. This ensures precise orientation for seamless integration into downstream processes and efficient production line flow.
hnology The Standard Conveyor U features a 300 mm wide modular flat belt driven by a drum motor for stable and dependable operation. Electrical control with a frequency converter is included in a stainless steel cabinet. Optional flights and adjustable guides can be added to maintain accurate tray positioning.
Built entirely in stainless steel with an open construction, the Standard Conveyor U is designed for harsh production environments and easy industrial cleaning. Its small footprint allows straightforward integration into existing lines, and it can be produced in any length required by the customer.
Standard Conveyor U
Technical Specifications
Weight
Approx. 150 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Noise Level
< 80 dB
Power Supply
1 x 230V + N
Power Consumption
0.50 kW
Full-Load Current
2.16 A
Max SCCR (Ik Max)
6 kA
Max Fuse
16 A
Frequency
50 Hz
