Tray Handling

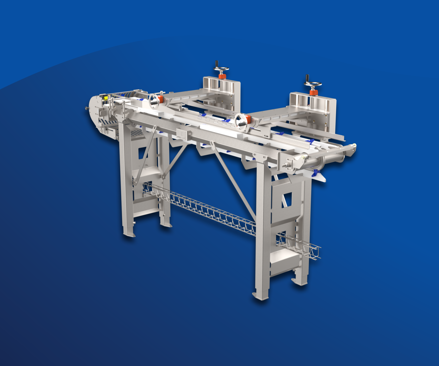

Step Conveyor Chain
With a capacity of up to 60 trays per minute, the Step Conveyor Chain moves trays forward in controlled steps, creating short stops that allow accurate loading while the tray is stationary. This ensures precise placement of products in rows and layers and supports complex loading patterns defined per recipe.
The step length and tray positioning are defined in the HMI recipe to match specific tray sizes and loading requirements. Adjustable guides can be adapted easily to the size of each individual tray, providing safe handling and consistent positioning. This conveyor version is equipped with a stainless steel chain.
Designed with a small footprint, the Step Conveyor Chain delivers high output in limited space. Built in stainless steel for harsh production environments, it features an open, hygienic design suitable for industrial cleaning and reliable daily operation.
Step Conveyor Chain
Technical Specifications
Capacity
Up to 60 trays/min
Weight
Approx. 200 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Noise Level
< 80 dB
Power Supply
3 x 400V + N
Power Consumption
0.89 kW
Full-Load Current
1.84 A
Max SCCR (Ik Max)
6 kA
Max Fuse
13 A
Frequency
50 Hz
