“Before, we were running at around 25 cups per minute. Now we can run at around 60, which is the capacity we need. But I think the machine is capable of much more. It’s a good capacity machine.”
Automated Lid Application

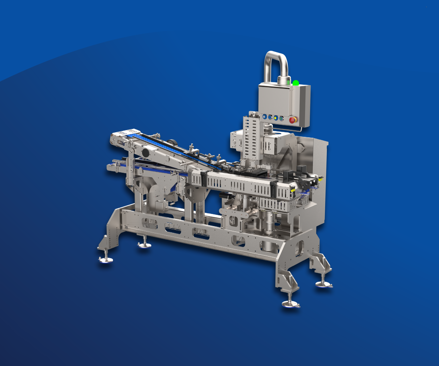

Lid Applicator
QUPAQ’S Lid Applicator is a stand-alone machine designed for reliable, high‑performance lid application in production environments where stable operation, high capacity, and uptime are critical.
With a capacity of up to 140 lids per minute, the solution supports efficient, continuous production, while still enabling flexible and efficient handling of changeovers when required.
The platform combines robust mechanics with intelligent automation to deliver consistent lid placement with low operator dependency and minimal operational complexity. It performs equally well in productions with frequent product changes and in long, stable production runs with limited changeovers, where continuous flow, line reliability, and predictable output are key performance drivers.
Lid Applicator
Automation, Reliability, & Quality in One
Automated, recipe‑driven changeover enables fast and repeatable setup when production conditions change, while the stable mechanical design secures consistent performance across shifts during continuous operation.
When required, an optional Flow Stabilizing Infeed Unit can be added to absorb variations in incoming flow and support stable operation and improved line utilization.
As an option, an Outfeed Reject Unit can be included to automatically remove trays with missing or incorrectly applied lids, protecting product quality while maintaining continuous, high‑capacity flow through the line.
Three Reasons to Choose the Lid Applicator
Lid Applicator
Technical Specifications
Capacity
Up to 140 placements/min
Air Consumption
5 L/min at 140 placements/min
Air Pressure
6 bar
Tray + Lid Size Range
L: 80-320 mm / W: 80-270 mm / H: 25-100 mm
Weight
Approx. 610 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Noise Level
< 80 dB
Power Supply
3 x 400-480V
Power Consumption
1.17 kW
Full-Load Current
2.42 A
Max SCCR (Ik Max)
6 kA
Max Fuse
16 A
Frequency
50-60 Hz
