Easy Loader 135
Automated Product Loading

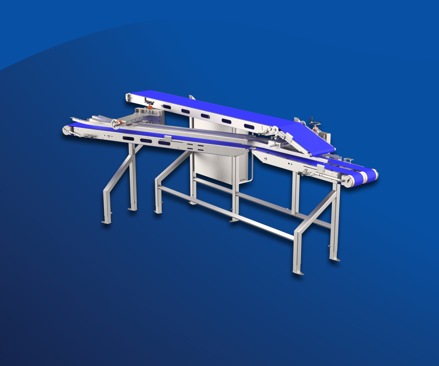

Easy Loader 135

The Easy Loader 135 is an automatic high-speed product-loading system designed for high-volume production, handling up to 135 trays per minute. It forwards portions/products from your portioning system, fills them into trays, and delivers them to your tray sealer.

The Easy Loader 135 combines a hygienic design with a minimal number of moving parts, reducing maintenance requirements and operating costs. It is designed for easy integration into both new and existing production lines, as it delivers consistent performance, reliability, and efficiency in demanding food production environments.

Download Data Sheet

Flexible Product Placement

An optional four-position stop expands the flexibility of the Easy Loader 135, as it allows products to be placed in multiple tray positions and supports a wide variety of tray configurations.

Additionally, the Easy Loader 135 is compatible with our Cleanline, LeanOne, and Smart denesters. This offers exceptional flexibility across a wide range of tray formats and production layouts, where fast tray changeovers in just one minute can help maximize uptime and keep production running smoothly.

Three Reasons to Choose the Easy Loader 135

Easy Loader 135

Technical Specifications

Capacity Up to 135 trays/min
Weight Approx. 450 kg
Steel Quality EN 1.4301, AISI 304
IP Class *IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity 10% - 90%
Operational Temperature 5°C-40°C / 41°F-104°F
Noise Level < 80 dB
Power Supply 3 x 400 + N
Power Consumption 3.14 kW
Full-Load Current 6.47 A
Max SCCR (Ik Max) 6 kA
Max Fuse 16 A
Frequency 50 Hz
Automated Product Loading

Take Loading Flexibility to the Next Level

Each of our loaders are designed for specific functionalities, ranging from gentle product loading to high-speed loading. With the ability to switch between different loading patterns in just minutes, our solutions offer exceptional flexibility and adapt seamlessly to a wide range of food productions.
