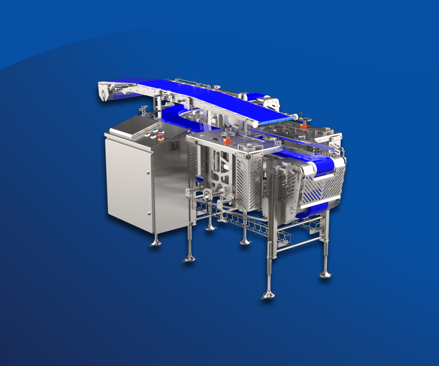

Flex Loader
Automated Product Loading

Flex Loader

The Flex Loader is our most versatile and adaptable tray loader yet, engineered for food productions that need great flexibility. With a compact footprint, it delivers high-speed/high-capacity performance of up to 150 products/min, while offering modular adjustments to suit the needs for any production line.

The Flex Loader is a stand-alone machine that works with all types of tray feeding systems, and it provides limitless possibilities for the variety and quantity of products loaded into each tray.

By eliminating the space between trays, the Flex Loader enhances efficiency by reducing tray transportation time. This creates a smoother process flow, which minimizes product movement and maintains consistency. This allows the Flex Loader to run at high speed, while leveraging a smooth tray loading acceleration curve.

Download Data Sheet
ANY FOOD IN ANY TRAY

One Loader with Endless Possibilities

The Flex Loader shows its flexibility through precise recipe control by transitioning seamlessly within a minute between tray types of varying sizes and materials, as well as between product types like sliced and minced meats.

By combining the possibilities for multiproduct step-loading capabilities with straightforward singleproduct loading, the Flex Loader enhances operational efficiency and adaptability even at high capacities.

Three Reasons to Choose the Flex Loader

Flex Loader

Technical Specifications

Capacity 1 product/tray: 150 trays/min - 2 products/tray: 130 trays/min - 4 products/tray: 65 trays/min
Weight Approx. 475 kg
Steel Quality EN 1.4301, AISI 304
IP Class *IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity 10% - 90%
Operational Temperature 5°C-40°C / 41°F-104°F
Noise Level < 80 dB
Power Supply 3 x 400V + N
Power Consumption 2.45 kW
Full-Load Current 5.06 A
Max SCCR (Ik Max) 6 kA
Max Fuse 16 A
Frequency 50 Hz
Automated Product Loading

Take Loading Flexibility to the Next Level

Each of our loaders are designed for specific functionalities, ranging from gentle product loading to high-speed loading. With the ability to switch between different loading patterns in just minutes, our solutions offer exceptional flexibility and adapt seamlessly to a wide range of food productions.
