Automated Product Loading

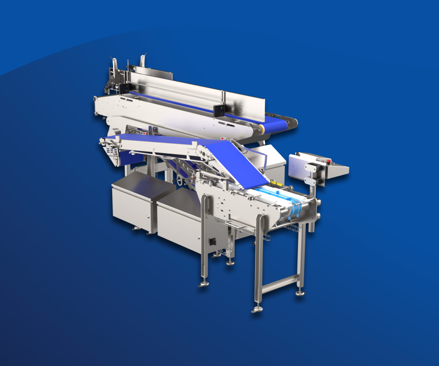

Step Loader
The Step Loader is designed to automatically denest trays and gently load products directly into them with high precision. Its supports both single-product and multi-product loading patterns, and it offers great flexibility for manufacturers who run a variety of products and tray formats.
Featuring a compact in-line design and a patented step conveyor system, the Step Loader can handle up to 140 products per minute while maintaining accurate product placement. The integrated Smart Buffer Servo ensures precise, fully electrical tray denesting, while advanced sensor technology continuously monitors product positioning throughout the loading process.
The Step Loader is built for modern food production environments as it combines hygienic design with simple operation and recipe-controlled changeovers. Products remain untouched by operators throughout the process, which supports both food safety and production efficiency. The result is a reliable, flexible, and profitable automation solution for high-capacity production lines.
Step Loader
Technical Specifications
Capacity
Up to 140 products/min
Weight
Approx. 215 kg
Steel Quality
EN 1.4301, AISI 304
IP Class
*IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity
10% - 90%
Operational Temperature
5°C-40°C / 41°F-104°F
Noise Level
< 80 dB
Power Supply
3 x 400 + N
Power Consumption
1.62 kW
Full-Load Current
3.34 A
Max SCCR (Ik Max)
6 kA
Max Fuse
16 A
Frequency
50-60 Hz
Automated Product Loading
Take Loading Flexibility to the Next Level
Each of our loaders are designed for specific functionalities, ranging from gentle product loading to high-speed loading. With the ability to switch between different loading patterns in just minutes, our solutions offer exceptional flexibility and adapt seamlessly to a wide range of food productions.
