Easy Loader Compact 135
Automated Product Loading

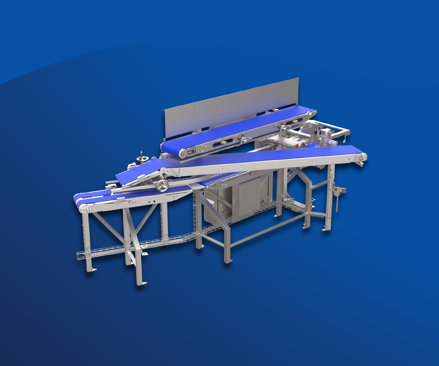

Easy Loader Compact 135

The Easy Loader 135 Compact delivers all the benefits of the Easy Loader 135 in a more space-efficient design. With a capacity of up to 135 trays per minute, it automatically transfers products from the portioning system into trays before forwarding them to the tray sealer.

The Easy Loader 135 Compact offers the same high-speed performance, precision, and reliability as the standard model while taking up less valuable space on the factory floor. Its compact footprint allows for easy integration into both new and existing production lines without compromising throughput.

This compact version also combines a hygienic design with a minimal number of moving parts, reducing maintenance requirements and operating costs. The result is a flexible, low-maintenance, and efficient loading solution built for production environments where floor space is at a premium,

Download Data Sheet

Flexible Product Placement

An optional four-position stop expands the flexibility of the Easy Loader Compact 135, as it allows products to be placed in multiple tray positions and supports a wide variety of tray configurations.

Additionally, the Easy Loader Compact 135 is compatible with our Cleanline, LeanOne, and Smart denesters. This offers exceptional flexibility across a wide range of tray formats and production layouts, where fast tray changeovers in just one minute can help maximize uptime and keep production running smoothly.

Three Reasons to Choose the Easy Loader Compact 135

Easy Loader Compact 135

Technical Specifications

Capacity Up to 135 trays/min
Weight Approx. 450 kg
Steel Quality EN 1.4301, AISI 304
IP Class *IP65 (*the machine incorporates additional components with higher protection ratings, up to IP69K)
Humidity 10% - 90%
Operational Temperature 5°C-40°C / 41°F-104°F
Noise Level < 80 dB
Power Supply 200 - 240V L1 + N (L1 + L2)
Power Consumption 1.76 kW
Full-Load Current 7.64 A
Max SCCR (Ik Max) 6 kA
Max Fuse 16 A
Frequency 50-60 Hz
Automated Product Loading

Take Loading Flexibility to the Next Level

Each of our loaders are designed for specific functionalities, ranging from gentle product loading to high-speed loading. With the ability to switch between different loading patterns in just minutes, our solutions offer exceptional flexibility and adapt seamlessly to a wide range of food productions.
